SCHUNK 301478

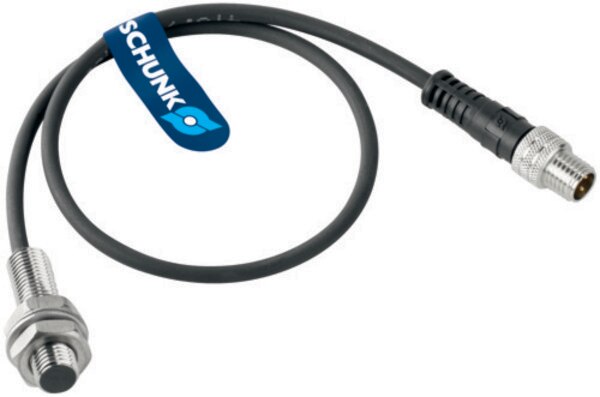

SCHUNK IN 80/S-M8, PNP CLOSER Proximity Switch
Measuring principle inductive Switching function Closer Type of switching PNP Switching distance [mm] 1.5 Switching hysterisis from the nominal switching distance < 15% Max. switching frequency [Hz] 3000 min. ambient temperature [°C] -25 max. ambient temperature [°C] 70 LED display in sensor yes Type of voltage DC Nominal voltage [V] 24 Min. voltage [V] 10 max. voltage [V] 30 Voltage drop [V] 1.5 Max. switching current [A] 0.2 Cable connector/cable end M8 Cable length [cm] 30 Cable diameter [mm] 3.5 Min. bending radius (dynamically) [mm] 35 Min. bending radius (statically) [mm] 17.5 Product weight [kg] 0.06 Tightness IP (sensor) 67
