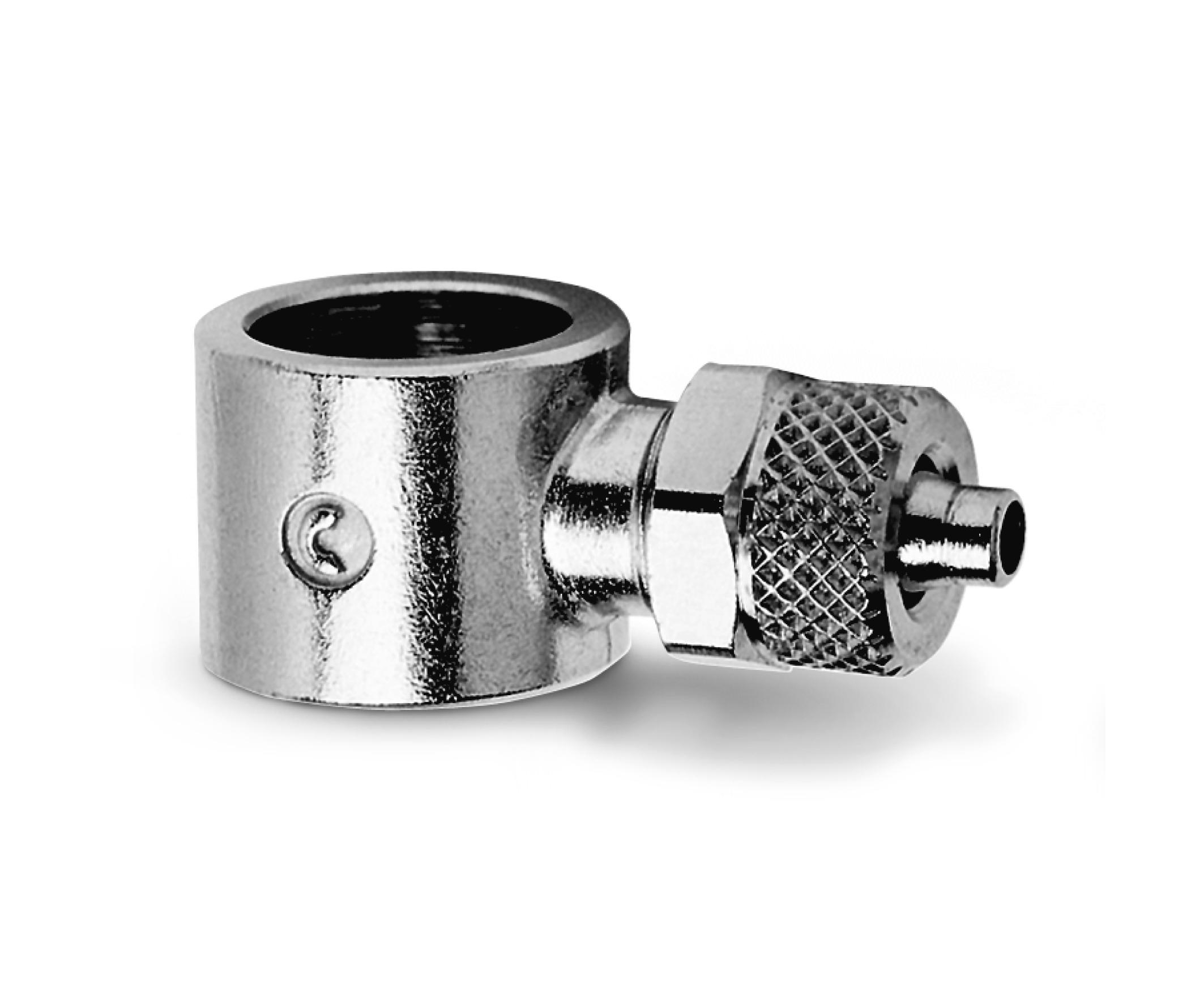

CAMOZZI 1610 6/4-1/4

Materials body and nut: nickel-plated brass O-ring: NBR thread seals: PTFE, PA, AL Threads GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP) M5 - M6 NPT and metric (available on request) Pressure the nominal pressure of the fittings is always higher than the pressure of the tube Tube to connect PA polyethylene braided PVC rilsan PU, Hytrel Polyester Diameters 5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm Fluid compressed air low pressure fluids Temperature -20°C ÷ 80°C NOTE: for a better use of the fitting we recommend to check the tubing specifications.
