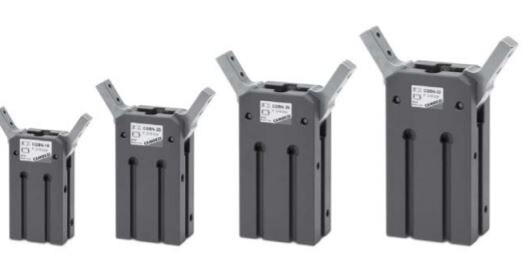

CAMOZZI CGSN-32

GENERAL DATA » Mounting repeatability is improved » Gripping fingers in stainless steel exhibit high resistance against corrosion » Large moving area Functioning double effect Working pressure 15 - 120 psi (1 bar - 8 bar) Working temperature 23°F - 140°F (-5°C - 60°C) Max operating frequency 100 cycles/min Lubrication lubrication is required on sliding section only Lever open/close angles -1° / + 180° (tolerance ±3°) Repeatability ± 0.2 mm Air ports M5x0.8 Fluid Filtered air without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied, lubrication should never be interrupted. Bore sizes (mm) 16 20 25 32 Weight(g) 140 255 430 740 Theoretical grip moment [M] (N·cm) 123xP 235xP 454xP 968xP [ P = pressure (MPa) ] Max length of gripping point [L] (mm) 80 100 120 140 Effective gripping force [F] (N) F = M/L x 0.9 (value with the fingers in parallel position), L = distance of gripping point (cm) Example with P = 0.5MPa and L max F = 7N F = 10N F = 17N F = 30N
