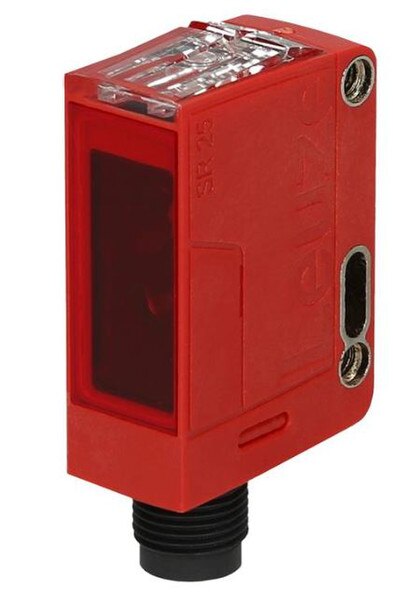

LEUZE PRK25C.D1/2N-M12
LEUZE (PRK25C.D1/2N-M12) 50134299, Polarized retro-reflective photoelectric sensor, Supply voltage: UB 10 ... 30 V, DC, Incl. residual ripple, Residual ripple: 0 ... 15 %, From UB, Open-circuit current: 0 ... 20 mA
Reflective photoelectric sensor with polarizing filter Digital outputs: 2 OUT 1: light switching (PNP) OUT 2: dark switching (PNP) Operational range: 0.05–10 m (with reflector TK(S) 100x100) Range limit max.: 12 m Light source: LED red Supply voltage: 10–30 V DC Switching frequency: 1,500 Hz Operating temperature: -40–60 °C Protection rating: IP67/IP69K Construction length: 30 mm Connection: M12 plug connection (4-pin)
