MARATHON SPECIAL PRODUCTS EPBAP84

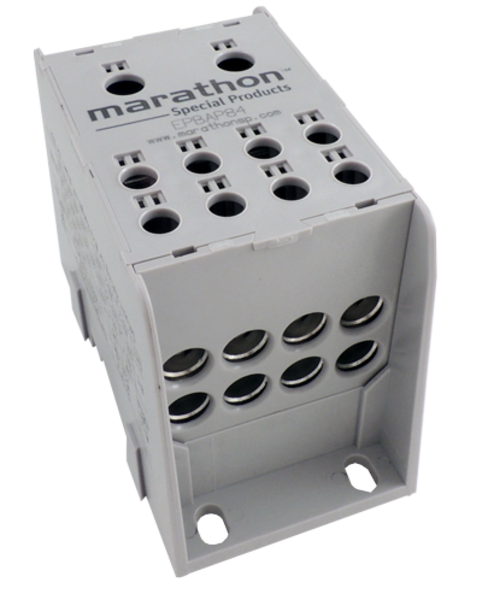

MARATHON SPECIAL PRODUCTS *(EPBAP84) Enclosed Power Distribution Blocks (EPB Series) 760 Amps, 100,000 Max SCCR, Panel Mount, AL Connector, 501 - #4 Line Side Wire Range AWG/kcmil, 2 Opening, 2/0-#14 Load Side AWG/kcmil, 8 Opening, (P/N 1381950) ***Must Be Ordered In Qty's Of 12***
Electrical 115 - 760 amps 600 volts AC/DC (UL) Up to 1000 volts (IEC) - reference data sheets Flexible stranded wire compliant Multiple wire rating - refer to data sheets for details Listed products provide feeder circuit terminal spacing Mechanical Insulator - thermoplastic: 125°C (257°F) - UL RTI Flammability, UL 94 V-0 Mounting: panel mountable and/or DIN mountable Standards See datasheets for product specific approvals listed UL listed - or - UL recognized Listed file no. QPQS.E309401 (UL 1953) Recognized file no. XCFR2.E62806 (UL 1059) CSA certified file no. LR19766 (CSA C22-2 No. 158) CE (Component IEC 60947-7-1) IEC 60529, IP-20 RoHS compliant (all) Accessories (contact customer service) Marker-cards - available with custom printing DIN rail and anchors
