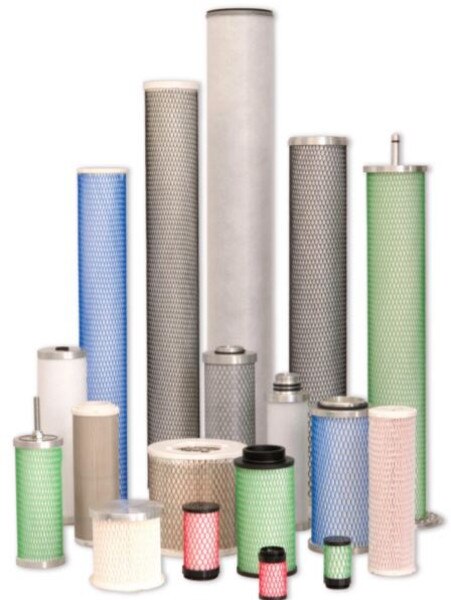

AVENTICS/NUMATICS (EKF42DD) 42 Series 0.3 Micron Coalescing Filter Element
Numatics Coalescing Media Typical coalescing media on the market today utilizes multilayered or mechanically wound media. This type of media allows particulate to plug the outer layer shortening the service life and change intervals. Numatics developed a proprietary weave of inorganic microfibers of different diameters. Our media is vacuum formed to create elements made out of millions of complex tortuous paths of varying density. This design allows particles to be trapped through the entire cross section of the filter, lowering pressure drop and maximizing capacity. Numatics media is ideally suited for multiple compressed air applications. Our media is available in various temperature ranges and is compatible with compressed air and non flammable / non toxic gases. Numatics Particulate Media The service life of any media is a function of the solid contaminant to which the filter media is subjected. In order to maintain the same flow through put as the media becomes contaminated requires an increase in pressure drop. Numatics offers pleated media which significantly increases surface area extending service life. Numatics has resin-impregnated media to provide high performance particulate removal in applications ranging from food processing to industrial filtration.
