EMERSON S4AL-01I8D-A4B0 4A = 2.50"

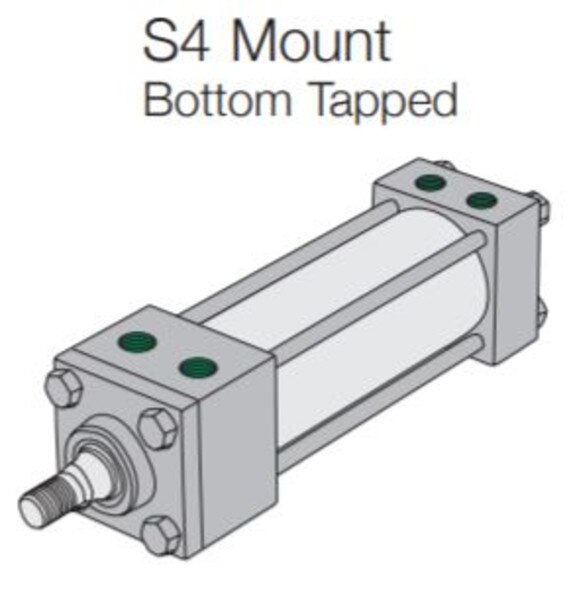

AVENTICS/NUMATICS A Series Cylinder, Bottom Tap Mount, 2.00" Bore, 1.50" Stroke, 1.00" Oversize Rod With 3/4-16 Female Threads, 3/8" NPT Ports In Position 1, No Cushions, Rod Stud, 2.50" Stop Tube, Bumpers On The Head, No Magnet
The A Series is an aluminum NFPA Interchangeable cylinder line that is designed and built to excel in the most demanding applications. The A Series encompasses many value-added features such as an extra long graphite filled cast iron rod bushing and a standard oversized wear band that is located on the rear of the piston. Additionally, the A Series includes the well-proven “T” piston seal configuration made from carboxilated nitrile with self-lubricating PTFE compound. These are just a sample of the features that make the A Series the superior NFPA Interchangeable air cylinder line.
