EMERSON R422103171

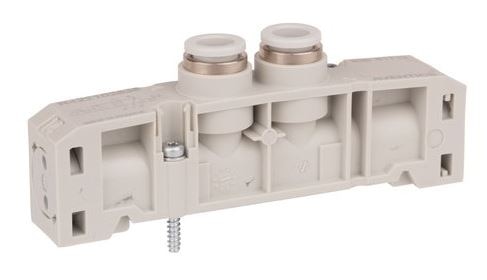

AVENTICS (R422103171) Series ES05, 2 X 3/2 Directional Control Valve, Single Solenoid, Spring Return, Normally Open
**Technical Data** Actuating Control: Single Solenoid Return Type: With Spring Return Switching Principle: 2x3/2 Housing: Polyamide, Polyoxymethylene Sealing Material: Acrylonitrile Butadiene Rubber Nominal Flow Qn: 0.376 Cv Compressed Air Connection Input: Base Plate Compressed Air Connection Output: Ø3/8 Function: NC/NC Activation: Electrically Working Pressure Min/Max: 14-116 psi Control Pressure Min/Max: 44-116 psi Ambient Temperature Min/Max: 41-122 °F Medium Temperature Min/Max: 41-122 °F Medium: Compressed Air Max. Particle Size: 40 µm Oil Content of Compressed Air: 0-5 mg/m³ Mounting Screws: Hexalobular Socket (TORX) ISO 10664-10 Mounting Screw Tightening Torque: 0.664 ft./lbs. Tightening Torque Tolerance: ±0,1 mT
