EMERSON R432016663

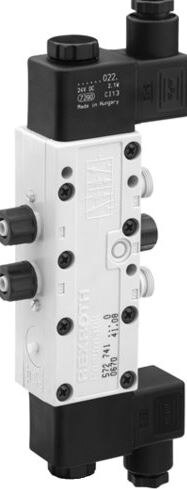

AVENTICS (R432016663) Series 740 Polymer Direction Control Valve, 5/2, Double Solenoid, 24VDC
**Technical Data** Actuating control Double solenoid Switching principle 5/2 Version Diaphragm poppet valve Housing Polyoxymethylene Sealing material Acrylonitrile butadiene rubber Connector standard EN 175301-803:2006 Protection class IP65 Port size EN 175301-803, form A Type Plug Nominal flow Qn 0.711 Cv Compressed air connection input 3/8″ Compressed air connection output 3/8″ DC operating voltage 24 V Activation Electrically
