SCHUNK 300369

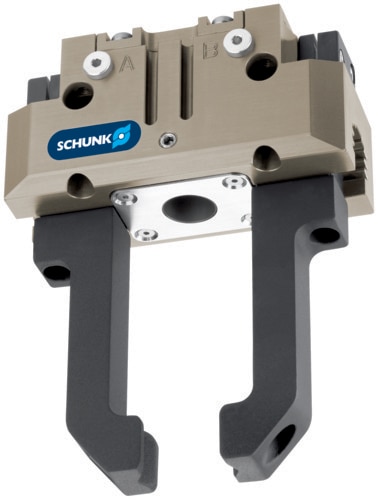

SCHUNK (300369) PGB 125 Pneumatic Parallel Gripper, PGB series ; Stroke per jaw : 10 [mm]; Closing force : 610 [N]; Opening force : 640 [N]; Weight : 1.32 [kg]; recommended workpiece weight : 3.3 [kg]; Closing time : 0.08 [s]; Opening time : 0.08 [s]
SCHUNK Pneumatic Parallel Gripper, PGB series - PGB 125; Stroke per jaw : 10[mm]; Closing force : 610 [N]; Opening force : 640 [N]; Weight : 1.32 [kg]; recommended workpiece weight : 3.3 [kg]; Fluid consumption double stroke : 32 [cm³]; min. operating pressure : 2.5 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.08 [s]; Opening time : 0.08 [s]; max. admissible finger length : 125 [mm]; max. admissible weight per finger : 1.1 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.01 [mm]; Diameter of center bore : 24 [mm]; Moment Mx max. : 80 [Nm]; Moment My max. : 115 [Nm]; Moment Mz max. : 70 [Nm]; max. axial force Fz max. : 2000 [N];
