SCHUNK 302031

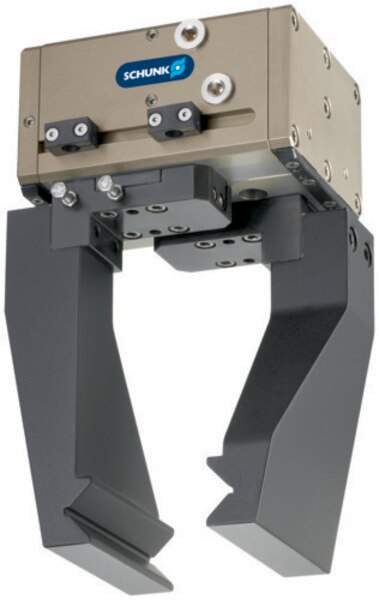

SCHUNK PFH 30-AS Pneumatic Parallel Gripper, PFH-mini series ; Stroke per jaw : 30 [mm]; Closing force : 720 [N]; Opening force : N/A [N]; Weight : 2.7 [kg]; recommended workpiece weight : 3.15 [kg]; Closing time : 0.35 [s]; Opening time : 0.35 [s]
SCHUNK Pneumatic Parallel Gripper, PFH-mini series - PFH 30-AS,; Stroke per jaw : 30[mm]; Closing force : 720 [N]; Opening force : N/A [N]; min. spring force : 90 [N]; Weight : 2.7 [kg]; recommended workpiece weight : 3.15 [kg]; Fluid consumption double stroke : 95 [cm³]; min. operating pressure : 5 [bar]; max. operating pressure : 6.5 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.35 [s]; Opening time : 0.35 [s]; Closing- / opening time with spring : 0.4 [s]; max. admissible finger length : 100 [mm]; max. admissible weight per finger : 2 [kg]; Protection class IP : 41 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.05 [mm]; Moment Mx max. : 30 [Nm]; Moment My max. : 95 [Nm]; Moment Mz max. : 45 [Nm]; max. axial force Fz max. : 1000 [N];
