SCHUNK 302033

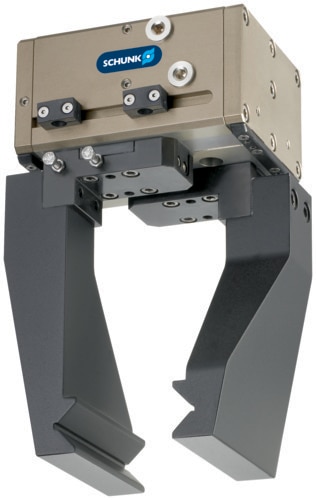

SCHUNK (302033) (0302033) PFH 30-60 Pneumatic Parallel Gripper, PFH-mini series ; Stroke per jaw : 60 [mm]; Closing force : 630 [N]; Opening force : 570 [N]; Weight : 3.5 [kg]; recommended workpiece weight : 3.15 [kg]; Closing time : 0.4 [s]; Opening time : 0.5 [s]
SCHUNK Pneumatic Parallel Gripper, PFH-mini series - PFH 30-60,; Stroke per jaw : 60[mm]; Closing force : 630 [N]; Opening force : 570 [N]; min. spring force : N/A [N]; Weight : 3.5 [kg]; recommended workpiece weight : 3.15 [kg]; Fluid consumption double stroke : 187 [cm³]; min. operating pressure : 2 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.4 [s]; Opening time : 0.5 [s]; Closing- / opening time with spring : N/A [s]; max. admissible finger length : 150 [mm]; max. admissible weight per finger : 2 [kg]; Protection class IP : 41 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.05 [mm]; Moment Mx max. : 30 [Nm]; Moment My max. : 95 [Nm]; Moment Mz max. : 45 [Nm]; max. axial force Fz max. : 1000 [N];
