SCHUNK 302143

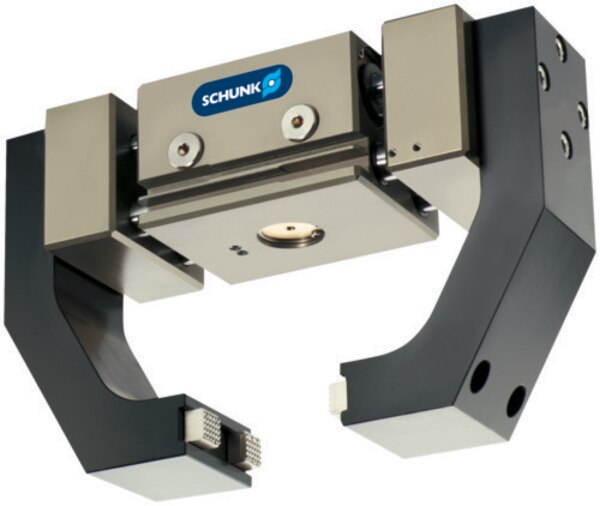

SCHUNK PSH 42/2, 2-Finger Parallel Gripper
SCHUNK Pneumatic Parallel Gripper, PSH series - PSH 42/2, 2-FIN. PARALLEL-; Version : N/A; Stroke per jaw : 29 [mm]; Closing force : 1170 [N]; Opening force : 1170 [N]; Weight : 3.9 [kg]; recommended workpiece weight : 6 [kg]; Fluid consumption double stroke : 148 [cm³]; min. operating pressure : 3 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; Closing time : 0.15 [s]; Opening time : 0.15 [s]; max. admissible finger length : 230 [mm]; max. admissible weight per finger : 2.5 [kg]; Protection class IP : 67 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.05 [mm]; Moment Mx max. : 25 [Nm]; Moment My max. : 20 [Nm]; Moment Mz max. : 25 [Nm]; max. axial force Fz max. : 500 [N];
