SCHUNK 302781

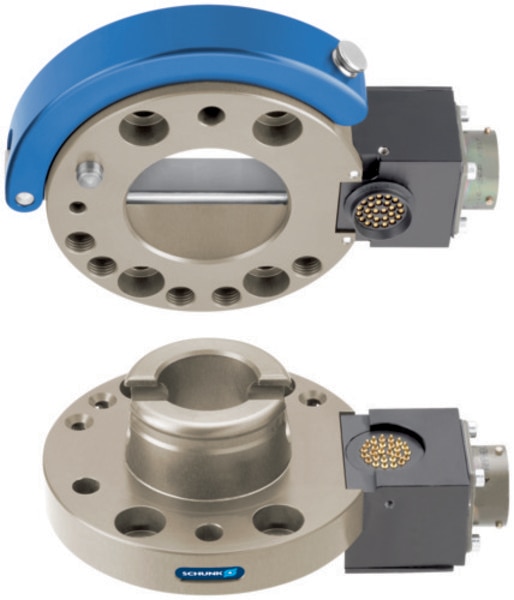

SCHUNK HWA-080-000-000; ADAPTER Manual Change System, HWS series; recommended handling weight : 24 [kg]; max. locking distance : 8 [mm]; Weight : 0.3 [kg]
recommended handling weight : 24 [kg]; Moment Mx max. : 100 [Nm]; Moment My max. : 100 [Nm]; Moment Mz max. : 65 [Nm]; Repeat accuracy : 0.01 [mm]; Weight : 0.3 [kg]; max. locking distance : 8 [mm]; Number of pneumatic feed-throughs : 5 ; Air connection thread pneumatic feed-through : G1/8" ; Pitch circle diameter : 80 [mm]; Robot-side connection : N/A ; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; Moment Mx max. : 300 [Nm]; Moment My max. : 300 [Nm]; Moment Mz max. : 195 [Nm]; Force Fz max. : 1200 [N];
