SCHUNK 303862

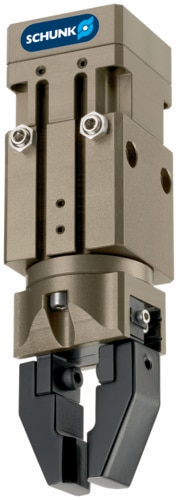

SCHUNK (303862) GSM-P-64-IS-E-180 Pneumatic Swivel Module Gripper, GSM-P series ; Stroke per jaw : 10 [mm]; Closing force : N/A [N]; Opening force : 147 [N]; recommended workpiece weight : 0.61 [kg]; Weight : 1.51 [kg]; Closing time : 0.02 [s]; Opening time : 0.01 [s]
SCHUNK Pneumatic Swivel Module Gripper, GSM-P series - GSM-P-64-IS-E-180,; Stroke per jaw : 10 [mm]; Closing force : N/A [N]; Opening force : 147 [N]; min. spring force : 33 [N]; Torque : 2.7 [Nm]; Angle of rotation : 180 [°]; End position adjustability : 180 [°]; Damping for swiveling : Elastomer ; recommended workpiece weight : 0.61 [kg]; Air consumption for gripping : 15.81 [cm³]; Air consumption for swiveling : 85 [cm³]; Weight : 1.51 [kg]; Nominal operating pressure : 6 [bar]; max. operating pressure : 6.5 [bar]; min. operating pressure for gripping : 4 [bar]; min. operating pressure for swiveling : 3 [bar]; Closing time : 0.02 [s]; Opening time : 0.01 [s]; Swiveling time with middle attached load** : 0.24 [s]; max. admissible finger length : 64 [mm]; max. admissible weight per finger : 0.24 [kg]; Max. permissible mass moment of inertia : 91 [kgmm²]; Protection class IP : 30 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy for gripping : 0.02 [mm]; Repeat accuracy for swiveling : 0.1 [°]; Moment Mx max. : 3.5 [Nm]; Moment My max. : 6 [Nm]; Moment Mz max. : 9 [Nm]; max. axial force Fz max. : 250 [N];
