SCHUNK 304970

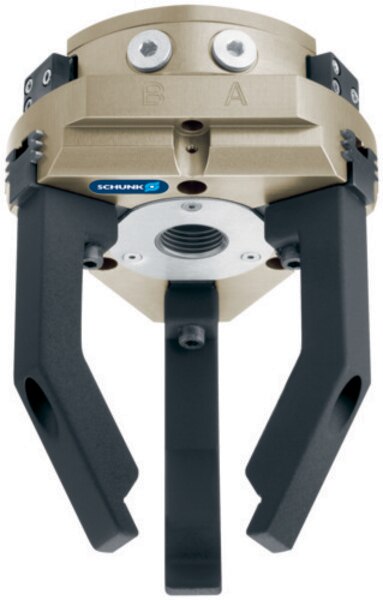

SCHUNK PZB+300-1 Pneumatic Centric Gripper, PZB-Plus series ; Stroke per jaw : 35 [mm]; Closing force : 11400 [N]; Opening force : 12200 [N]; Weight : 38 [kg]; recommended workpiece weight : 57 [kg]; Closing time : 1.3 [s]; Opening time : 1.3 [s]
SCHUNK Pneumatic Centric Gripper, PZB-Plus series - PZB+300-1; Stroke per jaw : 35 [mm]; Closing force : 11400 [N]; Opening force : 12200 [N]; min. spring force : N/A [N]; Weight : 38 [kg]; recommended workpiece weight : 57 [kg]; Fluid consumption double stroke : 2600 [cm³]; min. operating pressure : 2 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 1.3 [s]; Opening time : 1.3 [s]; Closing- / opening time with spring : N/A [s]; max. admissible finger length : 250 [mm]; max. admissible weight per finger : 11.5 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.05 [mm]; Diameter of center bore : 64 [mm]; Moment Mx max. : 400 [Nm]; Moment My max. : 400 [Nm]; Moment Mz max. : 250 [Nm]; max. axial force Fz max. : 8000 [N];
