SCHUNK 305199
SCHUNK (305199) SGB 32, POLY-A-ANGULAR

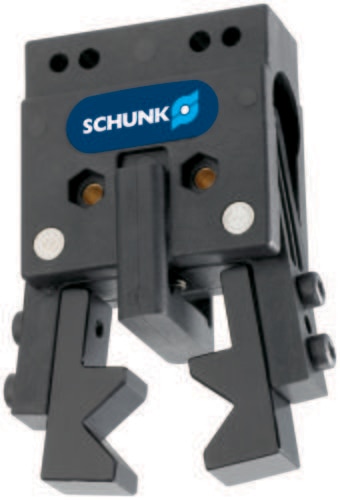

SCHUNK Pneumatic Angular Gripper, SGB series - SGB 32, POLY-A-ANGULAR; Opening angle per jaw : 8 [°]; Closed angle per jaw up to : 2 [°]; Closing moment : 0.9 [Nm]; Weight : 0.04 [kg]; recommended workpiece weight : 0.2 [kg]; Fluid consumption double stroke : 0.5 [cm³]; min. operating pressure : 4 [bar]; max. operating pressure : 7 [bar]; Nominal operating pressure : 6 [bar]; Closing time : 0.06 [s]; Opening time : 0.04 [s]; max. admissible finger length : 32 [mm]; max. admissible weight per finger : 0.03 [kg]; Protection class IP : 20 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.1 [mm]; min. pressure force : 2 [N]; Pressure stroke : 3.2 [mm]; Moment Mx max. : 0.1 [Nm]; Moment Mz max. : 0.1 [Nm]; max. axial force Fz max. : 3 [N];
