SCHUNK 305360

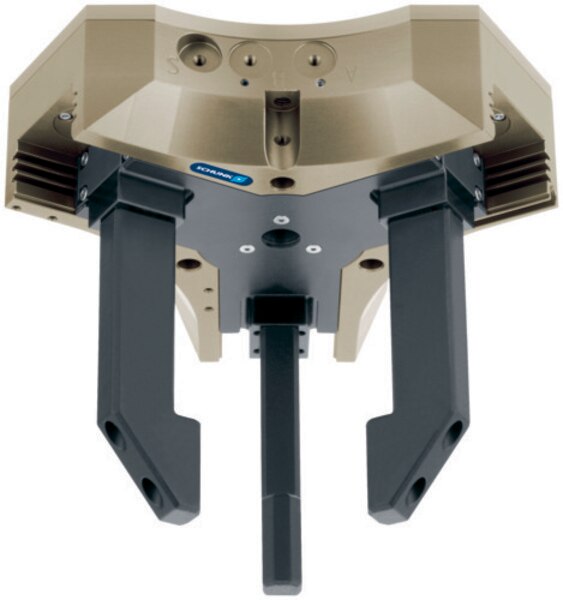

SCHUNK (0305360) PZH+20, Centric Gripper, Long-stroke gripper PZH-plus, Size: 20, pneumatic, Stroke per jaw: 20 mm, Closing force: 375 N, Opening force: 400 N, Max. ambient temperature: 90 °C
SCHUNK Pneumatic Centric Gripper, PZH-Plus series - PZH+ 20; Stroke per jaw : 20 [mm]; Closing force : 375 [N]; Opening force : 400 [N]; Weight : 1.5 [kg]; recommended workpiece weight : 1.9 [kg]; Fluid consumption double stroke : 65 [cm³]; min. operating pressure : 2 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.25 [s]; Opening time : 0.2 [s]; max. admissible finger length : 150 [mm]; max. admissible weight per finger : 0.9 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.02 [mm]; Cleanroom class ISO 14644-1 : 5 ; Moment Mx max. : 40 [Nm]; Moment My max. : 60 [Nm]; Moment Mz max. : 40 [Nm]; max. axial force Fz max. : 1100 [N];
