SCHUNK 305532

(0)No Reviews yet
Please Call or Email
SKU: 305532
Standard Shipping Lead Time 3 Business Days
ALT SKU: MPG+50-AS, 0305532

IF IN STOCK, Items will ship within 24 hours.

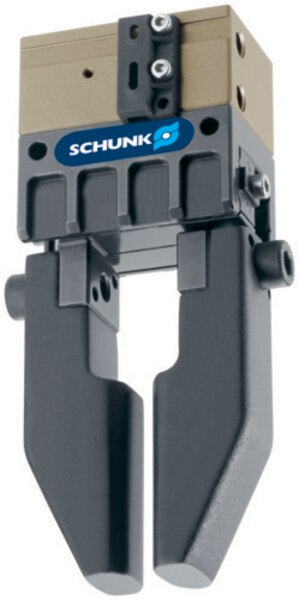

SCHUNK (0305532) MPG+50-AS, Gripper for small components MPG-plus, Size: 50, pneumatic, with gripping force maintenance: AS, Stroke per jaw: 8 mm, Closing force: 265 N, Max. ambient temperature: 90 °C
SCHUNK Pneumatic Parallel Gripper, MPG-plus series - MPG+50-AS; Version : N/A; Stroke per jaw : 8 [mm]; Closing force : 265 [N]; Opening force : N/A [N]; min. spring force : 50 [N]; Weight : 0.37 [kg]; recommended workpiece weight : 1.05 [kg]; Fluid consumption double stroke : 17 [cm³]; min. operating pressure : 4 [bar]; max. operating pressure : 6.5 [bar]; Nominal operating pressure : 6 [bar]; Closing time : 0.045 [s]; Opening time : 0.075 [s]; Closing- / opening time with spring : 0.3 [s]; max. admissible finger length : 64 [mm]; max. admissible weight per finger : 0.14 [kg]; Protection class IP : 30 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.02 [mm]; Moment Mx max. : 3 [Nm]; Moment My max. : 4 [Nm]; Moment Mz max. : 5 [Nm]; max. axial force Fz max. : 200 [N];
Click HERE to download literature or more information on this product.
