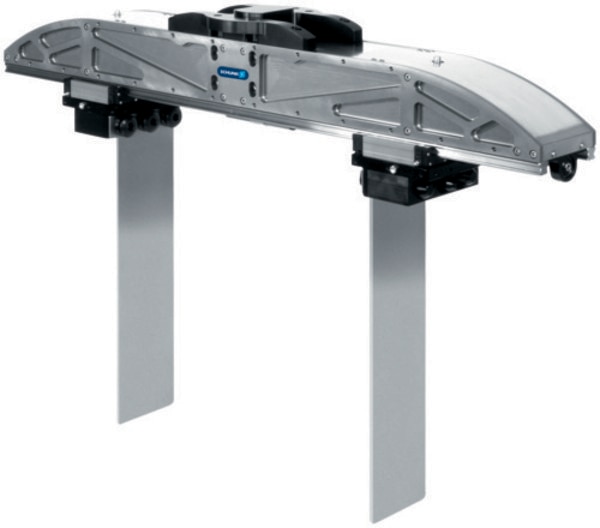

SCHUNK 308061
SCHUNK LEG 760-2-15-2-10X3-B Gripper; Stroke per jaw : 281 [mm]; minimum gripping force : 300 [N]; Weight : 7.9 [kg]; recommended workpiece weight : 7.5 [kg]
SCHUNK Electrical Parallel Gripper, LEG series; Stroke per jaw : 281[mm]; minimum gripping force : 300 [N]; Permanent gripping force (100% continuous duty) : 1500 [N]; Weight : 7.9 [kg]; recommended workpiece weight : 7.5 [kg]; max. admissible finger length : 600 [mm]; max. admissible weight per finger : 10 [kg]; Protection class IP : 20 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 55 [°C]; Repeat accuracy : 0.05 [mm]; max. speed : 276 [mm/s]; max. acceleration : 1500 [mm/s²]; Moment Mx max. : 75 [Nm]; Moment My max. : 242 [Nm]; Moment Mz max. : 149 [Nm]; max. axial force Fz max. : 1170 [N];
