SCHUNK 308680

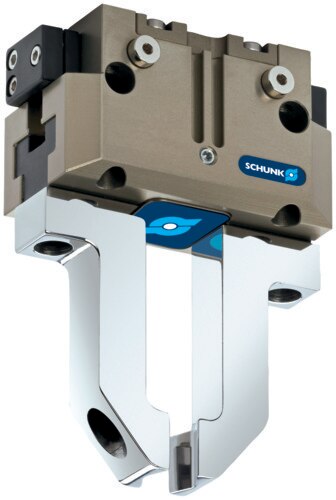

SCHUNK (308680) JGP 240-1 Pneumatic Parallel Gripper, JGP series ; Stroke per jaw : 30 [mm]; Closing force : 4200 [N]; Opening force : 4440 [N]; Weight : 8 [kg]; recommended workpiece weight : 21.5 [kg]; Closing time : 0.45 [s]; Opening time : 0.45 [s]
SCHUNK Pneumatic Parallel Gripper, JGP series - JGP 240-1,; Stroke per jaw : 30[mm]; Closing force : 4200 [N]; Opening force : 4440 [N]; min. spring force : N/A [N]; Weight : 8 [kg]; recommended workpiece weight : 21.5 [kg]; Fluid consumption double stroke : 650 [cm³]; min. operating pressure : 2.5 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.45 [s]; Opening time : 0.45 [s]; Closing- / opening time with spring : N/A [s]; max. admissible finger length : 280 [mm]; max. admissible weight per finger : 8.5 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.04 [mm]; Moment Mx max. : 200 [Nm]; Moment My max. : 190 [Nm]; Moment Mz max. : 120 [Nm]; max. axial force Fz max. : 4650 [N];
