SCHUNK 308920

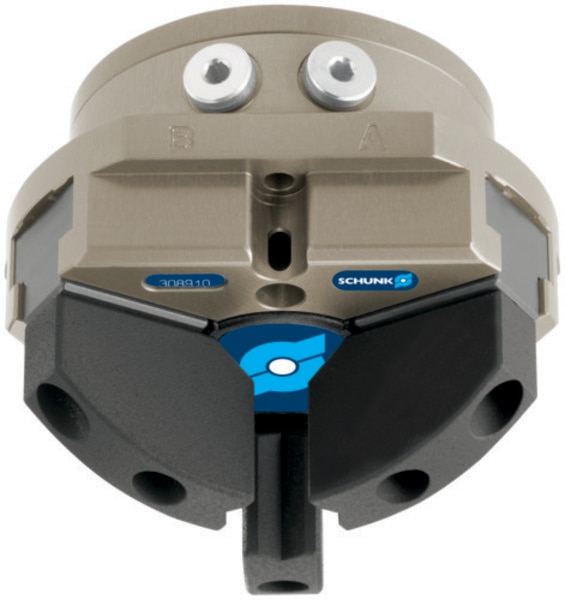

SCHUNK JGZ 64-1 Centric Gripper
SCHUNK Pneumatic Centric Gripper, JGZ series - JGZ 64-1,; Stroke per jaw : 6 [mm]; Closing force : 580 [N]; Opening force : 640 [N]; min. spring force : N/A [N]; Weight : 0.43 [kg]; recommended workpiece weight : 2.9 [kg]; Fluid consumption double stroke : 25 [cm³]; min. operating pressure : 2 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.03 [s]; Opening time : 0.03 [s]; Closing- / opening time with spring : N/A [s]; max. admissible finger length : 80 [mm]; max. admissible weight per finger : 0.35 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.01 [mm]; Cleanroom class ISO 14644-1 : 5 ; Moment Mx max. : 32 [Nm]; Moment My max. : 48 [Nm]; Moment Mz max. : 32 [Nm]; max. axial force Fz max. : 880 [N];
