SCHUNK 309128

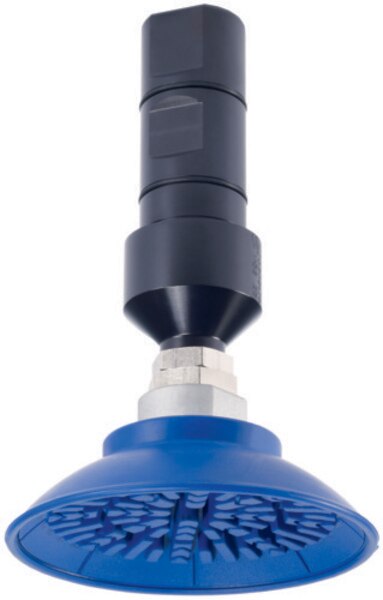

SCHUNK GSW-V25-SND125 Gripper; Weight : 0.31 [kg]; recommended workpiece weight : 4.9 [kg]; Time evacuation : 1.2 [s]; Time for putting down : 0.7 [s]; Suction force : 980 [N]
SCHUNK Pneumatic/Hydraulic Gripper with Shaft Interface, GSW-V series; Weight : 0.31 [kg]; recommended workpiece weight : 4.9 [kg]; Time evacuation : 1.2 [s]; Time for putting down : 0.7 [s]; Suction force : 980 [N]; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Max. admissible speed : 20 [1/min]; Nominal operating pressure compressed air : 6 [bar]; Nominal flow rate compressed air : 300 [l/min]; Minimum compressed air operating pressure : 4 [bar]; Maximum compressed air operating pressure : 8 [bar]; min. flow rate compressed air : 200 [l/min]; Nominal operating pressure coolant : 40 [bar]; Nominal flow rate coolant : 25 [l/min]; min. coolant operating pressure : 20 [bar]; max. coolant operating pressure : 60 [bar]; Nominal vaccuum : -0.8 [bar]; minimum vacuum : -0.6 [bar]; Noise pressure level : 94 [dB(A)];
