SCHUNK 310980

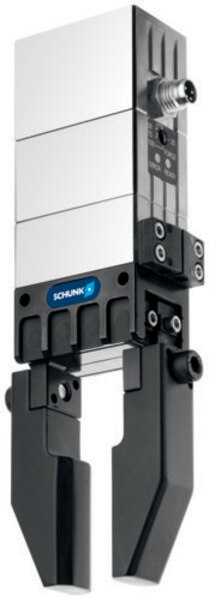

SCHUNK EGP 64-N-N-B Electrical Parallel Gripper, EGP series ; Stroke per jaw : 10 [mm]; minimum gripping force : 75 [N]; recommended workpiece weight : 1.25 [kg]; Opening time : 0.49 [s]; Closing time : 0.49 [s]; Nominal voltage : 24 [V DC]; Nominal current : 0.15 [A]Weight : 0.8 [kg]
SCHUNK Electrical Parallel Gripper, EGP series - EGP 64-N-N-B; Stroke per jaw : 10[mm]; minimum gripping force : 75 [N]; Permanent gripping force (100% continuous duty) : 300 [N]; recommended workpiece weight : 1.25 [kg]; max. admissible finger length : 80 [mm]; max. admissible weight per finger : 0.24 [kg]; Repeat accuracy : 0.02 [mm]; Closing time : 0.49 [s]; Opening time : 0.49 [s]; Weight : 0.8 [kg]; min. ambient temperature : 5 [°C]; max. ambient temperature : 55 [°C]; Protection class IP : 30 ; Noise emission : <70 [dB(A)]; Nominal voltage : 24 [V DC]; Nominal current : 0.15 [A]; max. current : 2 [A]; Controller electronics : integrated ; Communication interface : Digital Inputs ; Number of digital inputs : 2 ; Moment Mx max. : 3.5 [Nm]; Moment My max. : 6 [Nm]; Moment Mz max. : 9 [Nm]; Force Fz max. : 250 [N];
