SCHUNK 311621

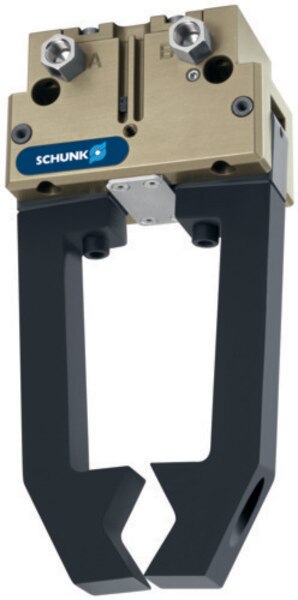

SCHUNK PWG+64-AS Angular Gripper
SCHUNK Pneumatic Angular Gripper, PWG-Plus series - PWG+64-AS; Version : N/A; Opening angle per jaw : 15 [°]; Closed angle per jaw up to : 3 [°]; Closing moment : 9.4 [Nm]; spring-actuated closing moment : 2.6 [Nm]; Weight : 0.33 [kg]; recommended workpiece weight : 0.65 [kg]; Fluid consumption double stroke : 17 [cm³]; min. operating pressure : 4 [bar]; max. operating pressure : 6.5 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.07 [s]; Opening time : 0.13 [s]; max. admissible finger length : 80 [mm]; max. mass moment of inertia per jaw* : 15 [kgcm²]; Protection class IP : 30 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.02 [mm]; Moment Mx max. : 15.6 [Nm]; Moment Mz max. : 38 [Nm]; max. axial force Fz max. : 220 [N];
