SCHUNK 321361

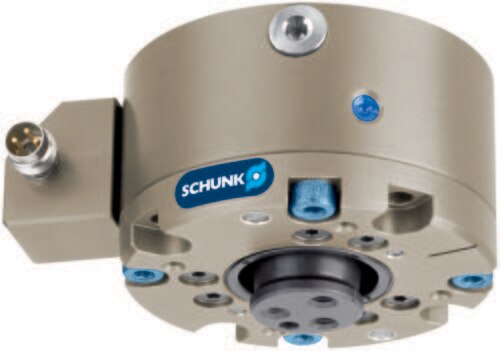

SCHUNK (321361) OPR-061-P00 COLLISION & PR-061-P00 , Collision & Overload Protection Device- Collision Sensor, Collision and overload protection with automatic reset
Axial deflection [mm] 5.6 Angular deflection [°] 11 Deflection, rotatory [°] 20 min. angular triggering torque Mx, My [Nm] 6.8 min. triggering torque, rotary Mz [Nm] 6.8 min. break-away force, axial Fd [N] 193 Force Fd max. [N] 880 min. supply voltage [V] 10 max. supply voltage [V] 30 Repeat accuracy [mm] ± 0.025 Response sensitivity [mm] 0.5 Repeat accuracy, rotary [min] 5 min. operating pressure [bar] 1.4 max. operating pressure [bar] 6.2 Weight [kg] 0.32 min. ambient temperature [°C] 5 max. ambient temperature [°C] 60 Moment Mx max. [Nm] 28 Moment My max. [Nm] 28 Moment Mz max. [Nm] 24.4
