SCHUNK 323035

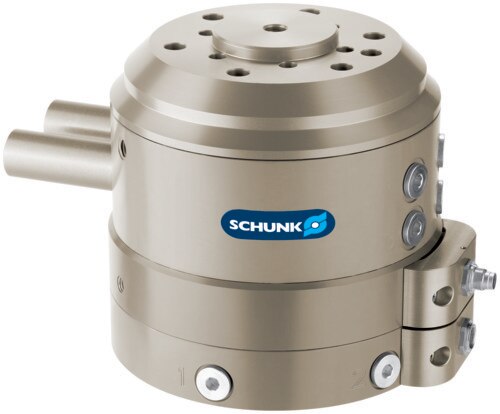

SCHUNK (323035) DDF 2-031-P2 (0323035) Pneumatic/Electric Rotary Feed-through, DDF 2 series; max. handling weight : 6 [kg]; Max. RPM : 120 [1/min]; Max. RPM : 720 [°/s]; Voltage : N/A [V]; Current : N/A [A]; Weight : 0.45 [kg]
Feed-through : pneumatic feed-through; max. handling weight : 6 [kg]; Max. RPM : 120 [1/min]; Max. RPM : 720 [°/s]; Continuous torque : 0.8 [Nm]; Starting torque : 1.3 [Nm]; Rotary movement : >360 [°]; Number of pneumatic feed-throughs : 2 ; Air connection thread pneumatic feed-through : 2x M5 ; max. pressure per connection : 10 [bar]; Rate of flow at 6 bar (per channel) : 100 [l/min]; max. pressure air purge : 1 [bar]; Number of electrical feed-throughs : N/A ; Voltage : N/A [V]; Current : N/A [A]; Weight : 0.45 [kg]; Robot-side connection : ISO 9409-1-31.5-4-M5 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; max. dynamic bending moment Mx* : 12 [Nm]; max. dynamic bending moment My* : 12 [Nm]; max. dynamic torsional moment Mz* : 8 [Nm]; max. lateral force Fq* : 60 [N]; Bending moment Mx : 25 [Nm]; Bending moment My : 25 [Nm]; Force Fz max. : 240 [N]; Force Fd max. : 2000 [N];
