SCHUNK 324561

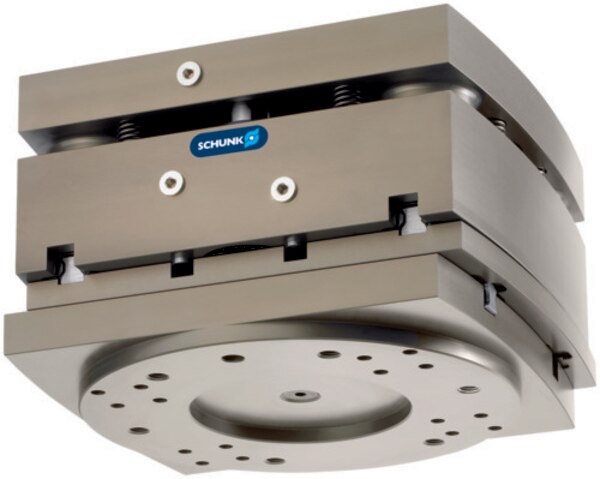

SCHUNK AGE-S-160-Z Pneumatic XYZ Compensation Unit, AGE-S series; Locking force : N/A [N]; Weight : 11.8 [kg]
Compensation XY : ±null [mm]; Compensation Z : 14 [mm]; max. handling weight horizontal : 60 [kg]; max. handling weight horizontal : 40 [kg]; Locking force : N/A [N]; max. radial force, position storage : N/A [N]; Piston stroke Z : 1900 [N]; min. spring force : 640 [N]; min. operating pressure : 2.5 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; Repeat accuracy : 0.1 [mm]; Robot-side connection : ISO 9409-1-160-6-M10 ; Tool-side connection : ISO 9409-1-160-6-M10 ; Weight : 11.8 [kg]; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; Moment Mx max. : 200 [Nm]; Moment My max. : 200 [Nm]; Moment Mz max. : 100 [Nm]; Force Fz max. : 800 [N]; Force Fd max. : 2000 [N];
