SCHUNK 324857

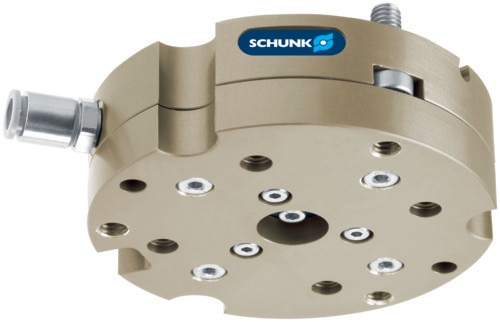

SCHUNK (324857) TCU-Z-200-3-OV Pneumatic Tolerance Compensation Unit, TCU-Z series; Weight : 2.45 [kg]; Direct connection to* : PZN-plus 200
Hardness of the elastomer : 68 [Shore]; Deflection X : 1 [°]; Deflection Y : 1 [°]; Deflection Z : 1 [°]; Repeat accuracy : N/A [mm]; Weight : 2.45 [kg]; min. operating pressure : 4 [bar]; max. operating pressure : 8 [bar]; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Locking moment Mx : N/A [Nm]; Locking moment My : N/A [Nm]; Locking moment Mz : N/A [Nm]; Force Fz max. : N/A [N]; Force Fd max. : 5000 [N]; Direct connection to* : PZN-plus 200 ; Moment Mx max. : 160 [Nm]; Moment My max. : 160 [Nm]; Moment Mz max. : 140 [Nm];
