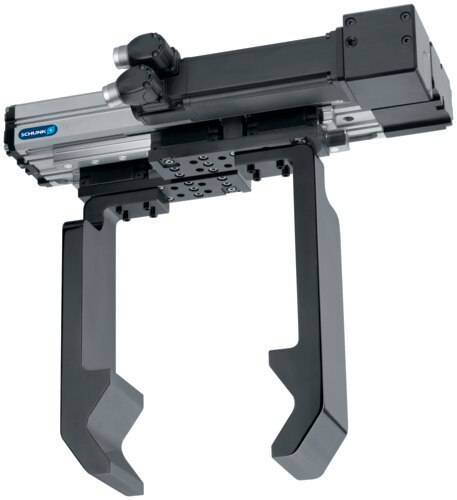

SCHUNK 332006
SCHUNK (332006) EGA-W 25-030-R-N-MSK030B Gripper; Stroke per jaw : 30 [mm]; minimum gripping force : 150 [N]; Closing time : 0.42 [s]; Opening time : 0.42 [s]; recommended workpiece weight : 2.5 [kg]; Weight : 3.5 [kg]
SCHUNK Electrical Parallel Gripper, EGA series; Stroke per jaw : 30[mm]; minimum gripping force : 150 [N]; Permanent gripping force (100% continuous duty) : 500 [N]; Closing time : 0.42 [s]; Opening time : 0.42 [s]; max. permissible speed positioning : 80 [mm/s]; max. permissible power operation speed : 30 [mm/s]; recommended workpiece weight : 2.5 [kg]; Repeat accuracy : 0.05 [mm]; max. admissible finger length : 200 [mm]; max. admissible weight per finger : 1 [kg]; Max. motor moment required : 0.28 [Nm]; Max. motor speed required : 2200 [1/min]; Weight : 3.5 [kg]; min. ambient temperature : 5 [°C]; max. ambient temperature : 55 [°C]; Protection class IP : 40 ; Moment Mx max. : 25 [Nm]; Moment My max. : 120 [Nm]; Moment Mz max. : 27 [Nm]; max. axial force Fz max. : 1000 [N];
