SCHUNK 340391

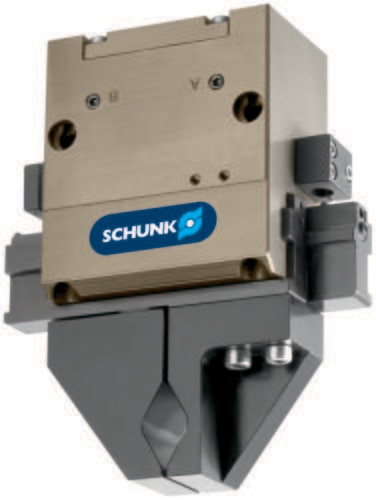

SCHUNK Pneumatic Parallel Gripper, PGF series - PGF125/AS,; Stroke per jaw : 31.5[mm]; Closing force : 1900 [N]; Opening force : N/A [N]; min. spring force : 480 [N]; Weight : 5.3 [kg]; recommended workpiece weight : 7.1 [kg]; Fluid consumption double stroke : 300 [cm³]; min. operating pressure : 4 [bar]; max. operating pressure : 6.5 [bar]; Nominal operating pressure : 6 [bar]; Closing time : 0.22 [s]; Opening time : 0.4 [s]; Closing- / opening time with spring : 0.8 [s]; max. admissible finger length : 125 [mm]; max. admissible weight per finger : 2.4 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.03 [mm]; Moment Mx max. : 48 [Nm]; Moment My max. : 120 [Nm]; Moment Mz max. : 120 [Nm]; max. axial force Fz max. : 2000 [N];
