SCHUNK 398940
SCHUNK (398940) LOG 40,0-M16x1-M5 Gripper; Height H : 47 [mm]; Mounting thread A : M16x1 ; Air connection thread B : M5 ; Weight : 0.034 [kg]; recommended workpiece weight : 1.23 [kg]; Closing time : 0.08 [s]; Opening time : 0.08 [s]

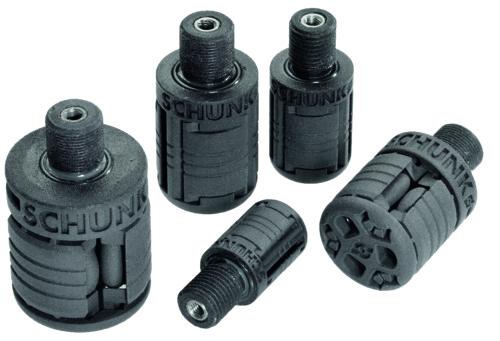

SCHUNK Pneumatic Hole Gripper, LOG series; Gripper Ø D +/-0.2 : 39.6 [mm]; Height H : 47 [mm]; Mounting thread A : M16x1 ; Air connection thread B : M5 ; Workpiece-Ø Dmin : 40 [mm]; Workpiece-Ø Dmax : 44.37 [mm]; Opening force for Ø Dmin : 241.4 [N]; Opening force for Ø Dmax : 66.7 [N]; Weight : 0.034 [kg]; recommended workpiece weight : 1.23 [kg]; Fluid consumption double stroke : 8.21 [cm³]; max. operating pressure : 6 [bar]; Nominal operating pressure : 6 [bar]; Closing time : 0.08 [s]; Opening time : 0.08 [s]; min. ambient temperature : -40 [°C]; max. ambient temperature : 80 [°C]; Housing material : PA 12 ; Protection class IP : 27 ; Moment Mx max. : 2 [Nm]; Moment My max. : 2 [Nm]; Moment Mz max. : 0 [Nm]; Force Fx max. : 200 [N]; Force Fy max. : 200 [N]; max. axial force Fz max. : 200 [N];
