SCHUNK 38318545

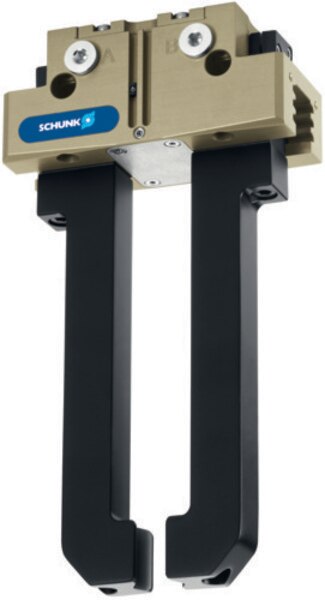

SCHUNK PGN+P 100-2-K Pneumatic Parallel Gripper, PGN+P series; Version : Anti-corrosion version; Stroke per jaw : 5 [mm]; Closing force : 1750 [N]; Opening force : 1870 [N]; min. spring force : N/A [N]; Weight : 0.9 [kg]
SCHUNK Pneumatic Parallel Gripper, PGN-Plus-P series; Version : Anti-corrosion version; Stroke per jaw : 5 [mm]; Closing force : 1750 [N]; Opening force : 1870 [N]; min. spring force : N/A [N]; Weight : 0.9 [kg]; recommended workpiece weight : 8.75 [kg]; Fluid consumption double stroke : 55 [cm³]; min. operating pressure : 2.5 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.07 [s]; Opening time : 0.07 [s]; Closing- / opening time with spring : N/A [s]; max. admissible finger length : 145 [mm]; max. admissible weight per finger : 1.3 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 130 [°C]; Repeat accuracy : 0.01 [mm]; Moment Mx max. : 87 [Nm]; Moment My max. : 115 [Nm]; Moment Mz max. : 80 [Nm]; max. axial force Fz max. : 2700 [N];
