SCHUNK 39303415

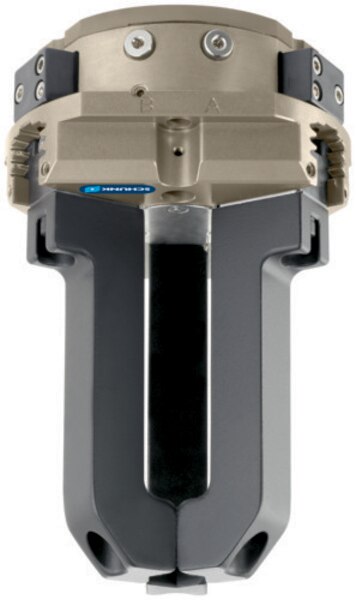

SCHUNK Pneumatic Centric Gripper, PZN-Plus series - PZN+ 200-2-V; Version : High-temperature version; Stroke per jaw : 14 [mm]; Closing force : 12700 [N]; Opening force : 13330 [N]; min. spring force : N/A [N]; Weight : 11 [kg]
SCHUNK Pneumatic Centric Gripper, PZN-Plus series - PZN+ 200-2-V; Version : High-temperature version; Stroke per jaw : 14 [mm]; Closing force : 12700 [N]; Opening force : 13330 [N]; min. spring force : N/A [N]; Weight : 11 [kg]; recommended workpiece weight : 63.5 [kg]; Fluid consumption double stroke : 1040 [cm³]; min. operating pressure : 2 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 1.2 [s]; Opening time : 1.2 [s]; Closing- / opening time with spring : N/A [s]; max. admissible finger length : 240 [mm]; max. admissible weight per finger : 6.5 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 130 [°C]; Repeat accuracy : 0.05 [mm]; Cleanroom class ISO 14644-1 : 5 ; Moment Mx max. : 180 [Nm]; Moment My max. : 200 [Nm]; Moment Mz max. : 140 [Nm]; max. axial force Fz max. : 5000 [N];
