SCHUNK 39318498

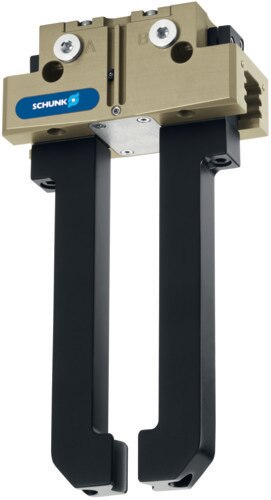

SCHUNK (39318498) PGN+P 64-1-AS-V Pneumatic Parallel Gripper, PGN-Plus-P series; Version : High-temperature version; Stroke per jaw : 6 [mm]; Closing force : 470 [N]; Opening force : N/A [N]; min. spring force : 120 [N]; Weight : 0.35 [kg]
SCHUNK Pneumatic Parallel Gripper, PGN-Plus-P series; Version : High-temperature version; Stroke per jaw : 6 [mm]; Closing force : 470 [N]; Opening force : N/A [N]; min. spring force : 120 [N]; Weight : 0.35 [kg]; recommended workpiece weight : 1.75 [kg]; Fluid consumption double stroke : 24 [cm³]; min. operating pressure : 4 [bar]; max. operating pressure : 6.5 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.02 [s]; Opening time : 0.04 [s]; Closing- / opening time with spring : 0.07 [s]; max. admissible finger length : 90 [mm]; max. admissible weight per finger : 0.4 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 130 [°C]; Repeat accuracy : 0.01 [mm]; Moment Mx max. : 47 [Nm]; Moment My max. : 60 [Nm]; Moment Mz max. : 53 [Nm]; max. axial force Fz max. : 1300 [N];
