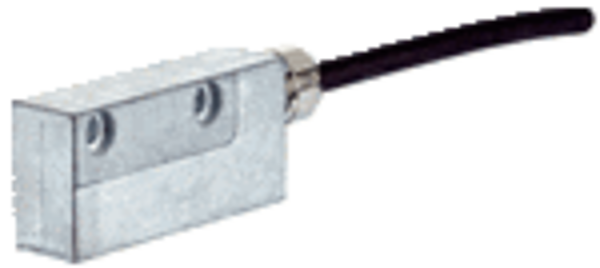

SICK 1057793

SICK (1057793) TTK50-HXQ0-K02, Motor feedback systems linear HIPERFACE, TTK50, Measuring step: 0.244 µm For Interpolation of the sine/cosine signals with, e. g., 12 bits, Measuring length: ? 940 mm, Resolution: 1 µm, Length of period: 1 mm, Traversing speed: ? 10 m/s, up to which the absolute position can be reliably produced, 1.3 m/s, Repeatability: < 5 µm, System accuracy: ± 10 µm (+20 °C), Measured value backlash: < 10 µm, Cable: 0.5meters
