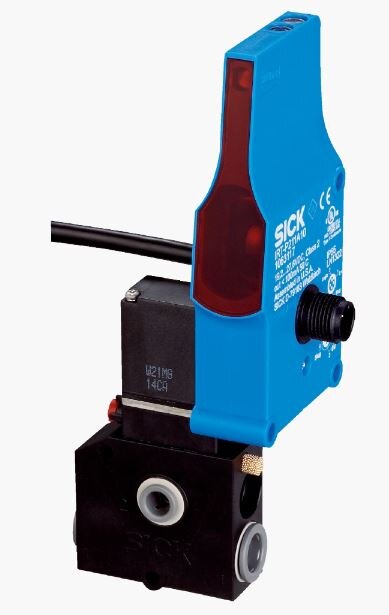

SICK 1063109
SICK MultiTask photoelectric sensors, ZoneControl, IRT-P212E41, Sub product family: IR, Sensing range max.: 60 mm 900 mm, Sensor principle: Photoelectric proximity sensor, Detection principle: Background suppression, Switching output: PNP, Connection type: Male connector
Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Actuator Pneumatic, valve on board Max. number of sensors Approx. 30 1) Approx. 50 2) Logical principle of operation Single accumulation Type of Release Single release, block (slug) release Dimensions (W x H x D) 50 mm x 147.4 mm x 48.9 mm Sensing range max. 60 mm ... 900 mm Sensing range 60 mm ... 900 mm Focus 7° Type of light Infrared light Light source LED 3) Light spot size (distance) Ø 20 mm (500 mm) Angle of dispersion 7° Adjustment Potentiometer, 9 turns Special applications ZoneControl 1) When powerd from the end of the IR daisy chain. 2) When powerd from center of the IR daisy chain. 3) Average service life: 100,000 h at TU = +25 °C.
