SICK 2094785

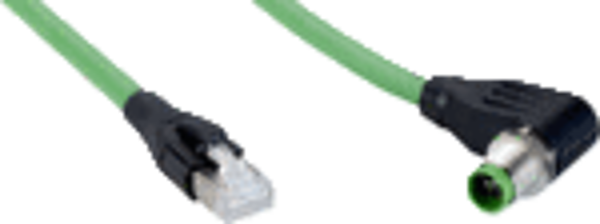

SICK (2094785) SSL-2J08-M10MACE, Connection A: Male connector, M12, 8-pin, angled, X-coded, Connection B: Male connector, RJ45, 8-pin, straight, Green, 10 m, 8-wire, AWG26, PUR, halogen-free
Accessory group Plug connectors and cables Accessory family Connection cables Connection type head A Male connector, M12, 8-pin, angled, X-coded Connection type head B Male connector, RJ45, 8-pin, straight Locking nut material CuZn, nickel-plated brass Tightening torque 0.6 Nm Cable 10 m, 8-wire, AWG26, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Green Cable diameter 6.4 mm Conductor cross-section 4 x 2 x 0.14 mm² Shielding Shielded Nominal voltage, cable 125 V AC Test voltage, cable 1,000 V AC
