SICK 1018866

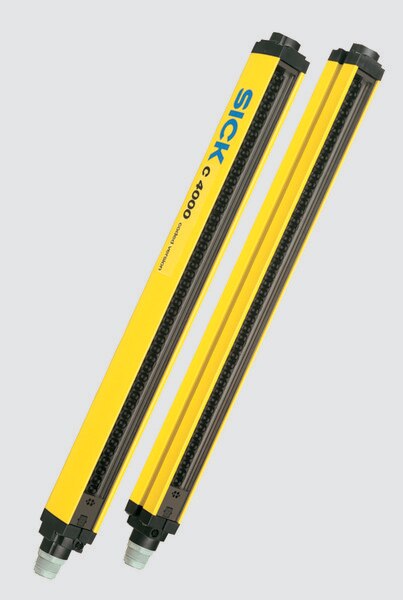

SICK C40E-1204DB010 C4000 Advanced Safety Light Curtain Receiver Unit Only, 40mm Resolution, 1200mm Protective Field Height, 0-19 Meter Scanning Range
ystem part Receiver Resolution 40 mm Protective field height 1,200 mm Scanning range 0 m ... 19 m Synchronization Optical synchronisation SAFETY-RELATED PARAMETERS Type Type 4 (IEC 61496-1) Safety integrity level SIL3 (IEC 61508) SILCL3 (EN 62061) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 15 * 10-9 (EN ISO 13849) 43 * 10-9 (EN ISO 13849) 63 * 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Safe state in the event of a fault At least one OSSD is in the OFF state.
