SICK 1054725

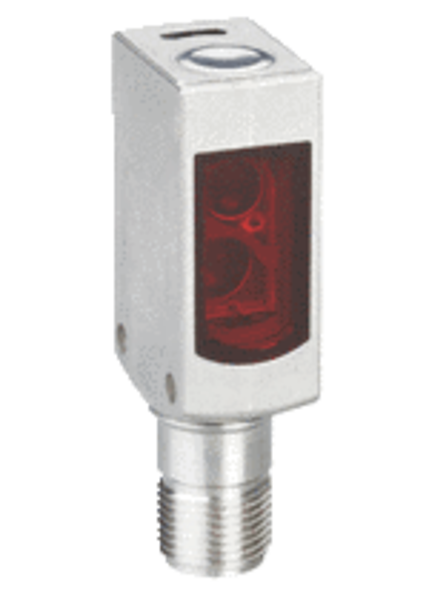

SICK WLG4S-3P2432V (1054725) Photoelectric Sensor, Washdown, Rectangular, Visible Red Light, PinPoint LED, 650nm, Single Teach-in Button, Hygienic And Washdown Zones, Detecting Transparent Objects, 10-30VDC, PNP, Light/Dark Switching, Male Connector M12, 4-Pin, Stainless Steel Housing, Detecting Transparent Objects
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation Dimensions (W x H x D) 15.25 mm x 49.2 mm x 22.2 mm Housing design Washdown Housing design (light emission) Rectangular Sensing range max. 0 m ... 5 m 1) Sensing range 0 m ... 3 m 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 45 mm (1.5 m) Wave length 650 nm Adjustment Single teach-in button AutoAdapt ✔ Special applications Hygienic and washdown zones, Detecting transparent objects 1) Reflector PL80A. 2) Average service life: 100,000 h at TU = +25 °C.
