SICK 1058176

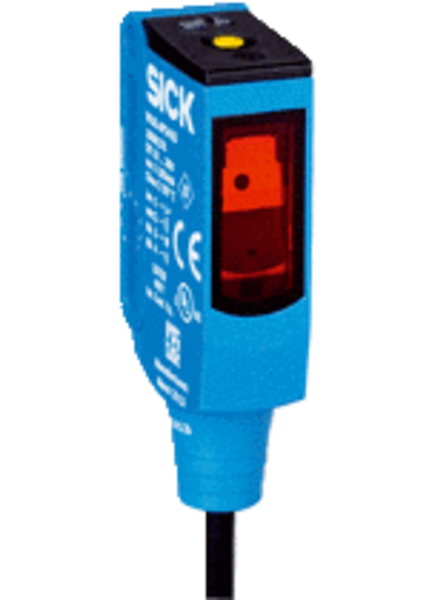

SICK WL9L-3P3432 (1058176) Photoelectric Retro-Reflective Sensor, Autocollimation, 0-12 Meter Maximum Sensing Range, Visible Red Laser Light, Single Teach-In Button Adjustment, 10-30VDC Supply, PNP Complementary Output, Light/Dark Switching, Cable With M12 Male Connector, 4-Pin 120mm
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation Dimensions (W x H x D) 12.2 mm x 50 mm x 23.6 mm Housing design (light emission) Rectangular Mounting hole M3 Sensing range max. 0 m ... 12 m 1) Sensing range 0 m ... 8 m 1) Type of light Visible red light Light source Laser 2) Light spot size (distance) Ø 1 mm (500 mm) Wave length 650 nm Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) Adjustment Single teach-in button Special applications Detecting small objects
