SICK 1089792

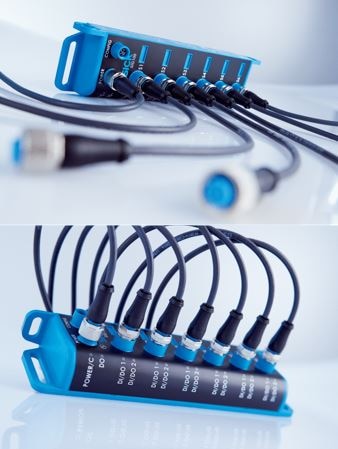

SICK SIG100-0A0111100 (1089792) Sensor Integration Gateway For Binary Sensors, (6) I/O M12 5-Pin Female Connectors, (1) Main Power M12 5-Pin Male Connector, (1) Configuration M8 4-Pin Female Connector, 10-30 VDC Supply, Maximum 12 PNP Inputs, Maximum 12 PNP Outputs
Connections I/O 6 x M12, 5-pin female connector, A-coded Power Main 1 x M12, 5-pin male connector, A-coded CONFIG 1 x M8, 4-pin female connector, USB 2.0 (USB-A) Supply voltage 10 V DC ... 30 V DC 1) Current consumption ≤ 70 mA without connected sensor Output current max. ≤ 500 mA total, all connections Output current S1-S6 I/O supply current ≤ 50 mA S1-S6 I/O switching outputs ≤ 50 mA Power Port I/O 50 mA Enclosure rating IP67 Protection class III Electrical safety EN 60950-1 (2011-01) Housing material ABS Housing color Light blue (RAL 5012) Weight 289 g Dimensions (L x W x H) 198.5 mm x 57 mm x 38.3 mm
