SICK 1213210

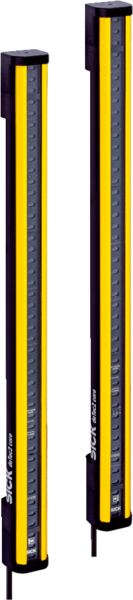

SICK C2C-SA10530A10000 Safety Light Curtain, Normal Industrial Environment, Sender, 30mm Resolution, 15m Scanning Range, 1,050mm Protective Field Height, Blind Zones, Optical Synchronisation, Male Connector, M12, 5-Pin, LED Display, 24VDC
Application Normal industrial environment System part Pair Compatible sender 1213210 Compatible receiver 1213211 Resolution 30 mm Scanning range 15 m Protective field height 1,050 mm Response time 11 ms No blind zones Yes Synchronization Optical synchronisation Items supplied Sender Receiver Test rod with diameter corresponding to the resolution of the safety light curtain Safety instruction Mounting instructions Operating instructions for download
