TE Connectivity 1SNL312510R0000

(0)No Reviews yet
$30.74
SKU: 1SNL312510R0000
Standard Shipping Lead Time 11 Business Days
ALT SKU: DBL125

Item is IN STOCK. Stock Items ship within 24 Hours.

Current Stock: 18

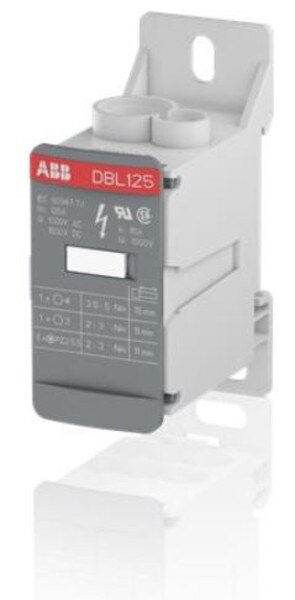

TE (1SNL312510R0000) DBL125 Distribution Block
Technical Rated Cross-Section:35 mm² Spacing:28.2 mm Connection Type:Screw clamp Function:Feed-through Number of Levels:1 Connecting Capacity Main Circuit:Screw Clamp / Rigid 1x 10 ... 35 mm² Rated Current (In):Main Circuit 125 A Rated Short-time Withstand Current (Icw):for 1 s 4200 A Rated Impulse Withstand Voltage (Uimp):8000 V Dielectric Test Voltage:2200 V Pollution Degree:3 Power Loss:4 W Degree of Protection:acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 Insulation Material:Polyamide Mounting on DIN Rail:TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 Tightening Torque:Main Circuit 3.5 ... 5 N·m Technical UL/CSA Maximum Operating Voltage UL/CSA:Main Circuit 1000 V Connecting Capacity UL/CSA:Stranded 2 AWG Flammability According to UL94:V0 Short-Circuit Current Rating (SCCR):100 kA Environmental Ambient Air Temperature:Operation -55 ... +110 °C Storage -55 ... +110 °C
Click HERE to download literature or more information on this product.
