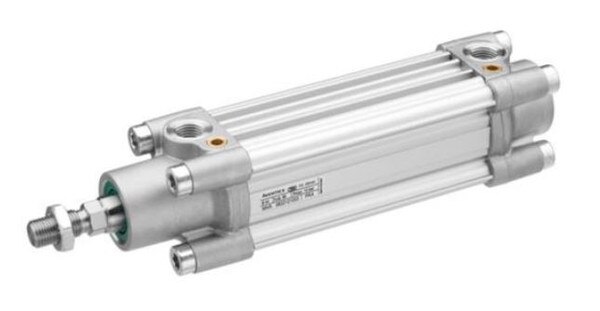

AVENTICS/NUMATICS (0822123009) AVENTICS™ Profile cylinder ISO 15552, PRA series ***Functionally Replaces Part # G453A6SK0320A00 Which Is Now Obsolete***
Back
StandardsISO 15552 Piston Ø63 mm Stroke320 mm Functional principleDouble-acting CushioningPneumatic adjustable cushioning Magnetic pistonPiston with magnet Environmental requirementsIndustry standard, ATEX optional CertificatesATEX optional Piston rodsingle ScraperStandard industrial scraper Pressure for determining piston forces6,3 bar Retracting piston force1765 N Extracting piston force1960 N Min. ambient temperature-20 °C Max. ambient temperature80 °C Working pressure min.1.5 bar Working pressure max10 bar PortsG 3/8 Piston rod threadM16x1,5 Cushioning length16.5 mm Cushioning energy27 J Weight 0 mm stroke1.42 kg Weight +10 mm stroke0.054 kg Stroke max.2500 mm MediumCompressed air
