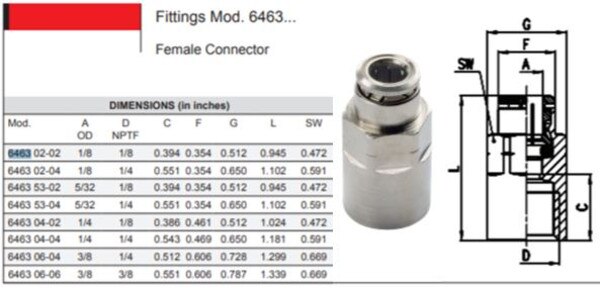

CAMOZZI 6463 53-02

Standard NPTF - Camozzi’s all metal fittings are 100% electrolytic nickel-plated brass. Full ID tube flow is always maintained for maximum Cv ratings and quick cycle times. “Push-in” and lock the tube quickly and effortlessly. Pro-Fit® thread design allows assembly with all female thread NPT forms. The new model is interchangeable with tapered thread fittings. The special sealing method has a locking effect similar to that of the taper model. Since the sealing ring is made of PTFE (Teflon®), it is not subject to wear and can be used repeatedly. Thread tape and thread sealants of other materials can be replaced, eliminating the need for fulllength NPTF thread, thus reducing the fitting size. Sealing is achieved on inclined, concave and convex surfaces. Fittings also available in coated thread sealant, Loctite Vibra-Seal 516 (use “C” prefix in part code, see tables for available models). Connection and disconnection of the tube can be repeated several times and can be performed using one hand and without the use of tools.

Click HERE to download literature or more information on this product.
