CAMOZZI FP2V-BRR
CAMOZZI (FP2V-BRR) FP2V-BRR VALVE 5/2 BISTABLE

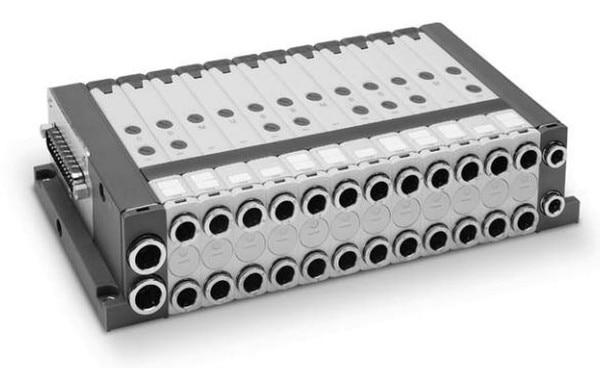

The new valve islands Series F are designed to satisfy the most demanding customers who require at the same time both reliability and cost effective solutions. The Series F is a very compact valve system that combines quality, flexibility and installation. • Completely made in technopolymer (PBT) • All pneumatic connections on one side • Modularity: 1 • Size: 12 mm - 14 mm • Nominal flow rate: 250 Nl/min - 500 Nl/min • Interchangeable cartridge fittings (for tube Ø 4, 6 and 8 mm) • Cartridge micro pilots: K8 • Temperature range: 0 ÷50°C • Working pressure: -0.9 ÷10 bar
