CAMOZZI T104-R00

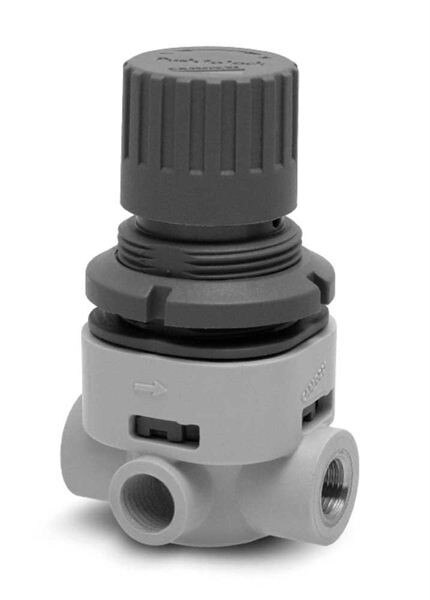

CAMOZZI (T104-R00) Pressure Micro Self-Relieving Regulator, 0.5 - 10 Bar Operating Pressure, G1/4 BSPP Ports
GENERAL DATA Construction piston Materials technopolymer body and piston, stainless steel spring, brass inserts, NBR O-ring and poppet Ports G1/8 - G1/4 Weight g 95 Pressure gauge ports G1/8 Mounting in-line or panel mounting (in any position) Operating temperature -5°C ÷ 50°C (with the dew point of the fluid lower than 2°C at the min. working temperature) Inlet pressure 0 ÷ 12 bar Outlet pressure 0.5 ÷ 10 bar (standard) 0 ÷ 2 bar 0 ÷ 4 bar 0.5 ÷ 7 bar Nominal flow see FLOW DIAGRAMS on the following pages Secondary pressure relieving with relieving (standard) without relieving (all regulators are provided with high relief flow VS function) fluid compressed air
