CEJN 10-116-1202

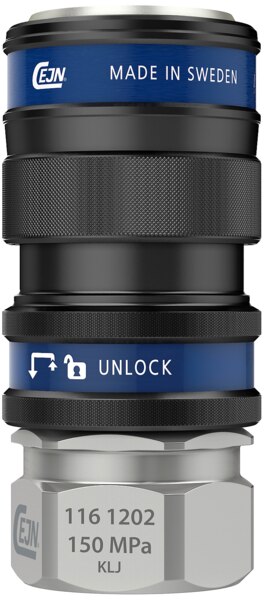

CEJN (10-116-1202) Series 116 Coupling with Safety Lock, 150 MPa, Female Thread, G1/4"
CEJN 116 series of hydraulic quick connect couplings for ultra high pressure are easy to handle, safe and reliable. The quick couplers are available in both standard and flat-face designs. Series 116 are non-drip couplings with clean connection and disconnection protecting both the environment and circuit integrity. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. The high performance and robust design with small outer dimensions, makes it a suitable option in many different applications. Additionally, a 90° swivel connection is available for use in confined areas. The couplings and nipples are available in stainless steel for use in corrosive environments. Plastic dust caps come as standard for both the couplings and nipples. These extend the lifetime of couplings, nipples and the entire hydraulic system. Aluminum dust caps are also available upon request.
