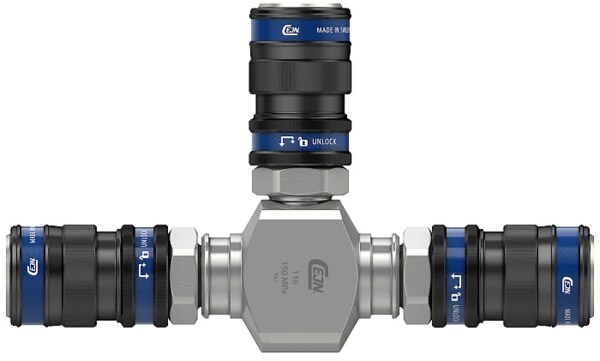

|| CEJN 10-116-3111(0)No Reviews yet $376.39 SKU: 10-116-3111 Standard Shipping Lead Time 4 Business Days IF IN STOCK, Items will ship within 24 hours. Quantity -+ Add to Cart Description CEJN (10-116-3111) Series 116 T-Connection, 150 MPa with 3 Couplings, Temperature Range -30°C — +100°C (-22°F — +212°F) Specifications CEJN Series 116 T-Connection is a lightweight, one-piece coupling and nipple combination for making serial connections on high-pressure hydraulic tool... Literature Click DescriptionSpecificationsLiterature Back CEJN (10-116-3111) Series 116 T-Connection, 150 MPa with 3 Couplings, Temperature Range -30°C — +100°C (-22°F — +212°F) Back CEJN Series 116 T-Connection is a lightweight, one-piece coupling and nipple combination for making serial connections on high-pressure hydraulic tools, such as bolt tensioners and cylinders. Replacing traditional porting blocks that can require up to 13 components with at least five different part numbers, the compact T-connection minimizes risk for leakage by reducing potential leak points. A modified seal enables the nipple valve to handle dynamic load while disconnected, without the risk of seal damage. The tested, pre-assembled connection comes ready for installation, thereby saving assembly time and costs. Back Click HERE to download literature or more information on this product. Reviews 0 Back Ratings & ReviewsNo reviews availableBe the first to Write a Review
|
|
||||||
